Products

  • Yornew 5 Axis CNC Machine Center
  • 5-axis Milling Machiner
  • Mini 5 Axis Milling Machiner
  • 5-axis Milling

Product No: VMC300

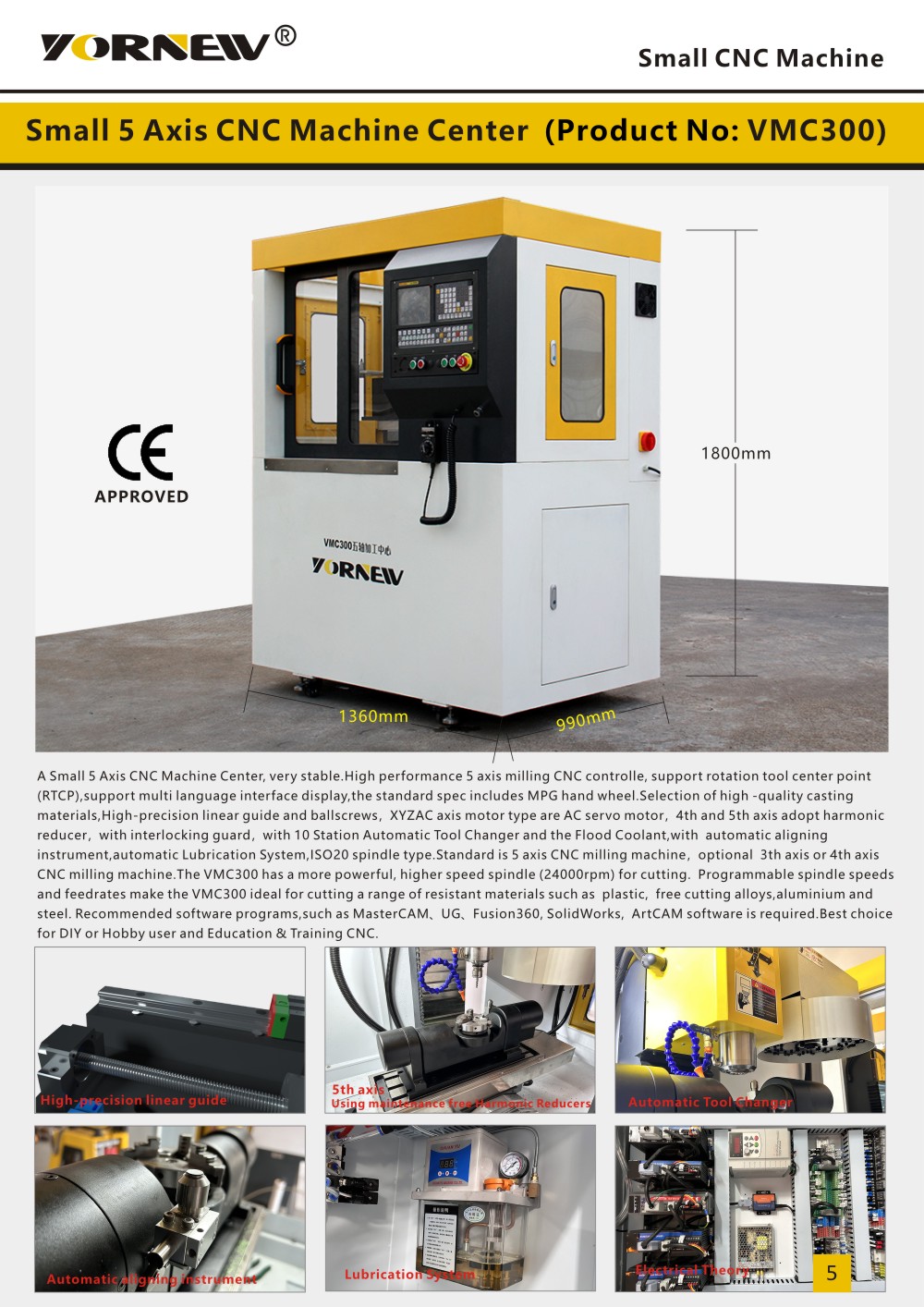

Product Name: Small 5 Axis CNC Machine Center


  • High performance 5 axis CNC center machine controller.
  • Using ARM high performance CPU and ultra large scale programmable devices FPGA, real time multi task control and hardware interpolation technology, to realize the high efficiency of μm-level precision processing.
  • The standard spec includes MPG hand wheel.
  • 10 tools ATC
  • Frequency conversion water cooling motor, low noise, high speed and good durability.

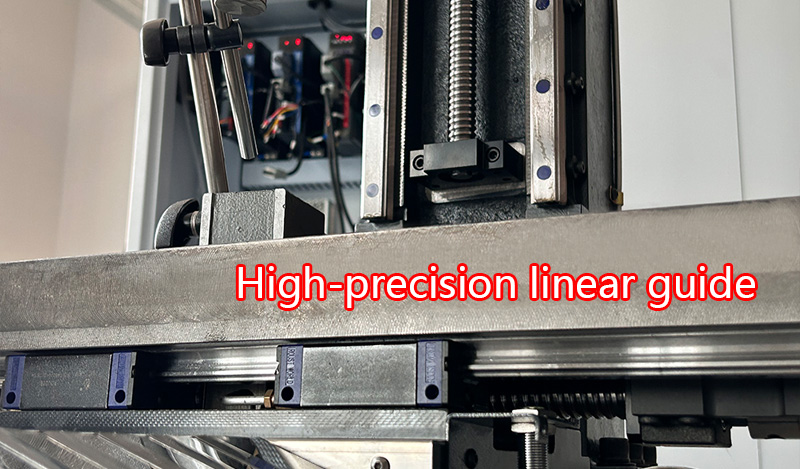

  • High-precision linear guide,Selection of high -quality casting materials,more compact.
  • Best choice for DIY or Hobby user and Education & Training CNC.

Small 5 Axis CNC Machine Center of maching Video

Small 5 Axis CNC Machine Center of maching Video

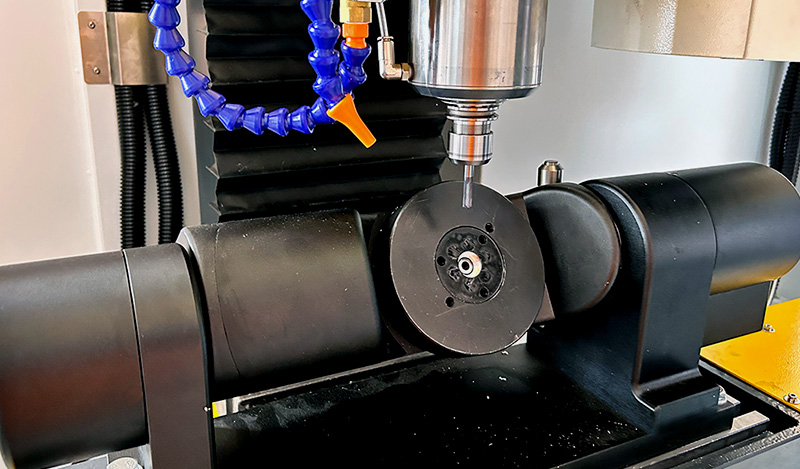

5-axis Milling Machiner
5-axis Milling Machiner

Features

(1). High performance 5 axis CNC center machine controller.
(2). The standard spec includes electronic hand wheel.
(3). High-precision linear guide,Selection of high -quality casting materials,more compact.
(4). 10 tools ATC.ISO20 spindle type, 24000rpm spindle speed.
(5). USB/U dis/RS232COM etc many kinds of communication mode, to help users achieve different data transmission and software upgrades easily.
(6). Frequency conversion water cooling motor, low noise, high speed and good durability.
(7). Perfect self diagnosis function, internal and external status real-time display, alarm immediately when abnormal.
(8). Macro variable, macro definition programming,realizing a variety of logical relations. Support macro program with parameters,convenient to the user programming.
(9). Graphic simulation function: show the graphics of the processing program and the tool path of the actual operation, tool path simulation processing without controlling the operation of the machine , to exam if the preparation process is correct.
(10). Multi interface selection: support multi language interface display, automatic fault alarm. Processing information display,processing time, the number.
(11). Parameter tabular: Input / output address number setting, only need to fill in the corresponding value in the configuration table.
(12).Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.


Mini 5 Axis Milling Machiner
Mini 5 Axis Milling Machiner

Mini 5 Axis Milling Machiner
Mini 5 Axis Milling Machiner

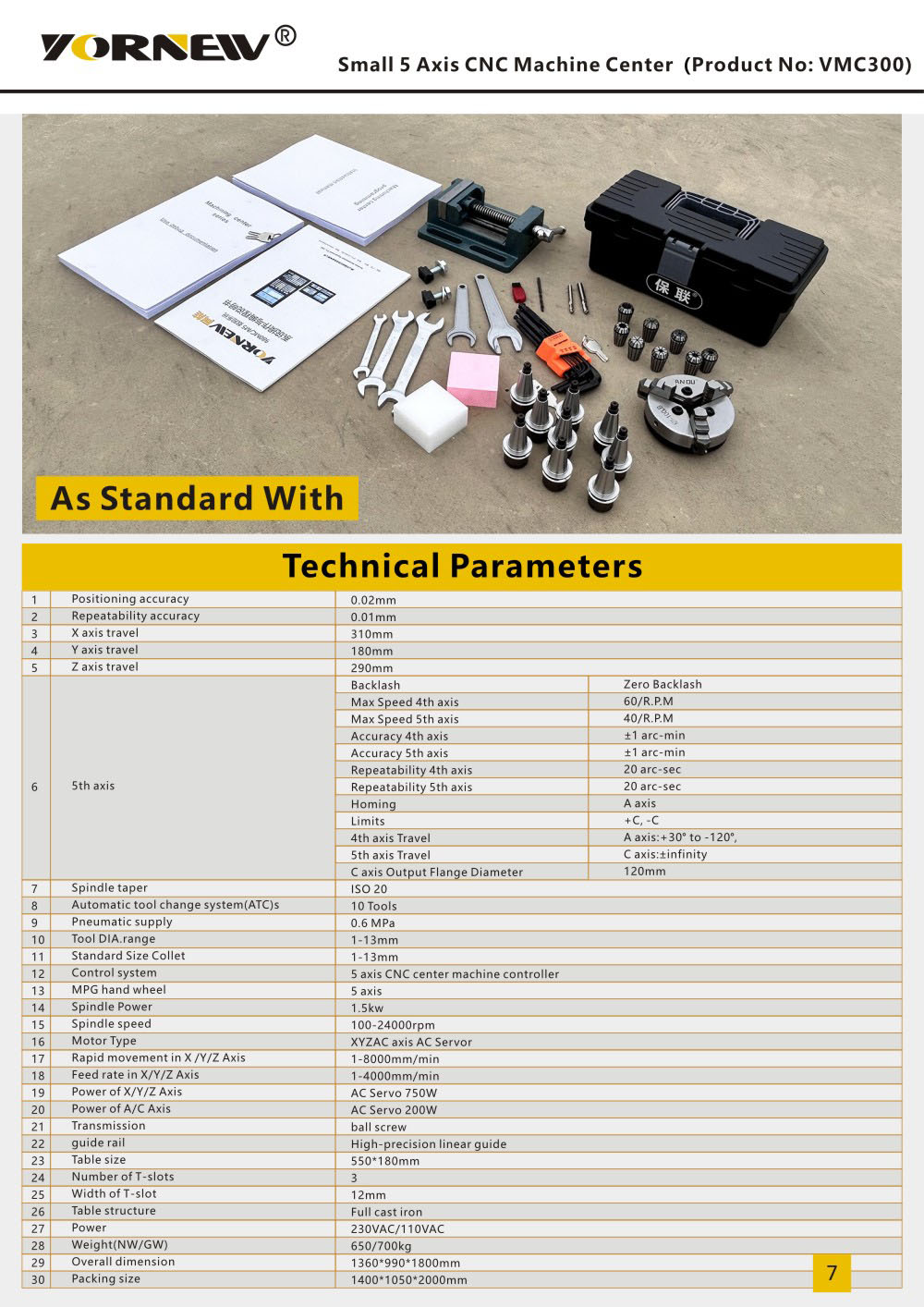

Technical parameters

Positioning accuracy

0.02mm

Repeatability accuracy

0.01mm

X axis travel

310mm

Y axis travel

180mm

Z axis travel

290mm

Options 5th axis

Backlash

Zero Backlash

Max Speed 4th axis

30/R.P.M

Max Speed 5th axis

30/R.P.M

Accuracy 4th axis

±1 arc-min

Accuracy 5th axis

±1 arc-min

Repeatability 4th axis

20 arc-sec

Repeatability 5th axis

20 arc-sec

Homing

A axis

Limits

+C, -C

4th axis Travel

A axis:+30° to -120°,

5th axis Travel

C axis:±infinity

C axis Output Flange Diameter

120mm

Spindle taper

ISO 20

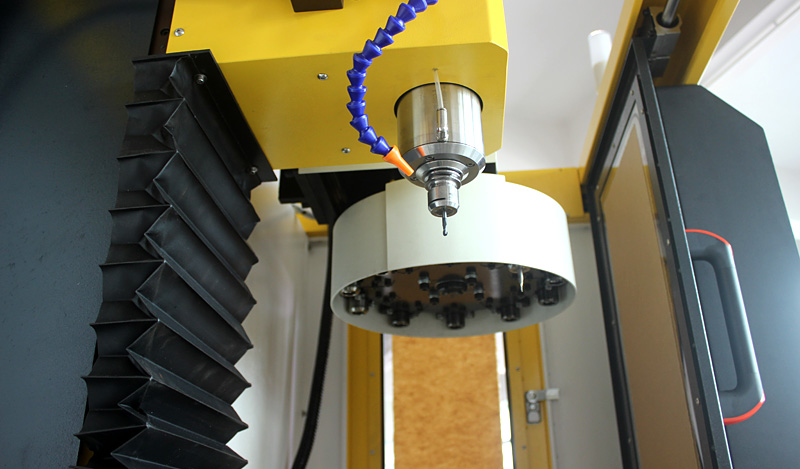

Automatic tool change system(ATC)

10 Tools

Pneumatic supply

0.6 MPa

Tool DIA.range

1-13mm

Standard Size Collet

1-13mm

Control system

5 axis CNC center machine controller

MPG hand wheel

5 axis

Spindle Power

1.5kw

Spindle speed

100-24000rpm

Motor Type

XYZAC axis AC Servo

Rapid movement in X /Y/Z Axis

1-8000mm/min

Feed rate in X/Y/Z Axis

1-4000mm/min

Power of X/Y/Z Axis

AC Servo 750W

Power of A/C Axis

AC Servo 200W

Transmission

ball screw

guide rail

High-precision linear guide

Table size

550*180mm

Number of T-slots

3

Width of T-slot

12mm

Table structure

Full cast iron

Power

230VAC/110VAC

Weight(NW/GW)

650/700kg

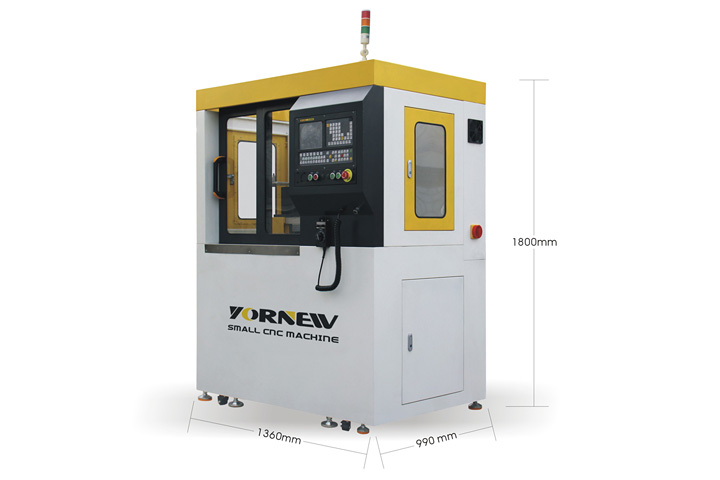

Overall dimension

1360*990*1800mm

Packing size

1400*1050*2000mm

5 axis Milling
5 axis Milling
VMC300 5-axis Milling Machine
SMALL 5 axis Milling Machine
5 axis Milling Machine
SMALL 5 axis  Machine
Yornew SMALL 5 axis Milling Machine
SMALL 5 axis Milling Machine

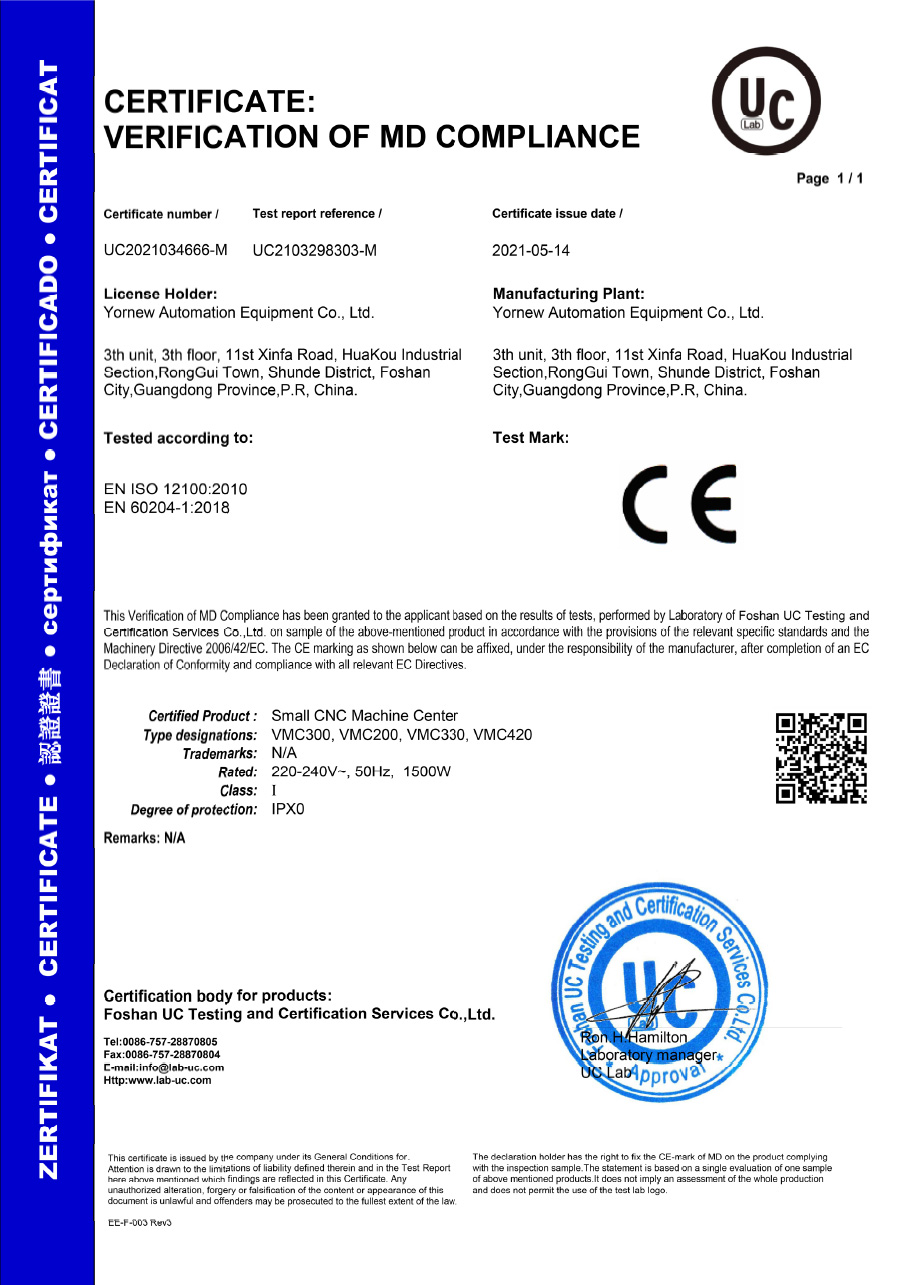

CE Certificate
